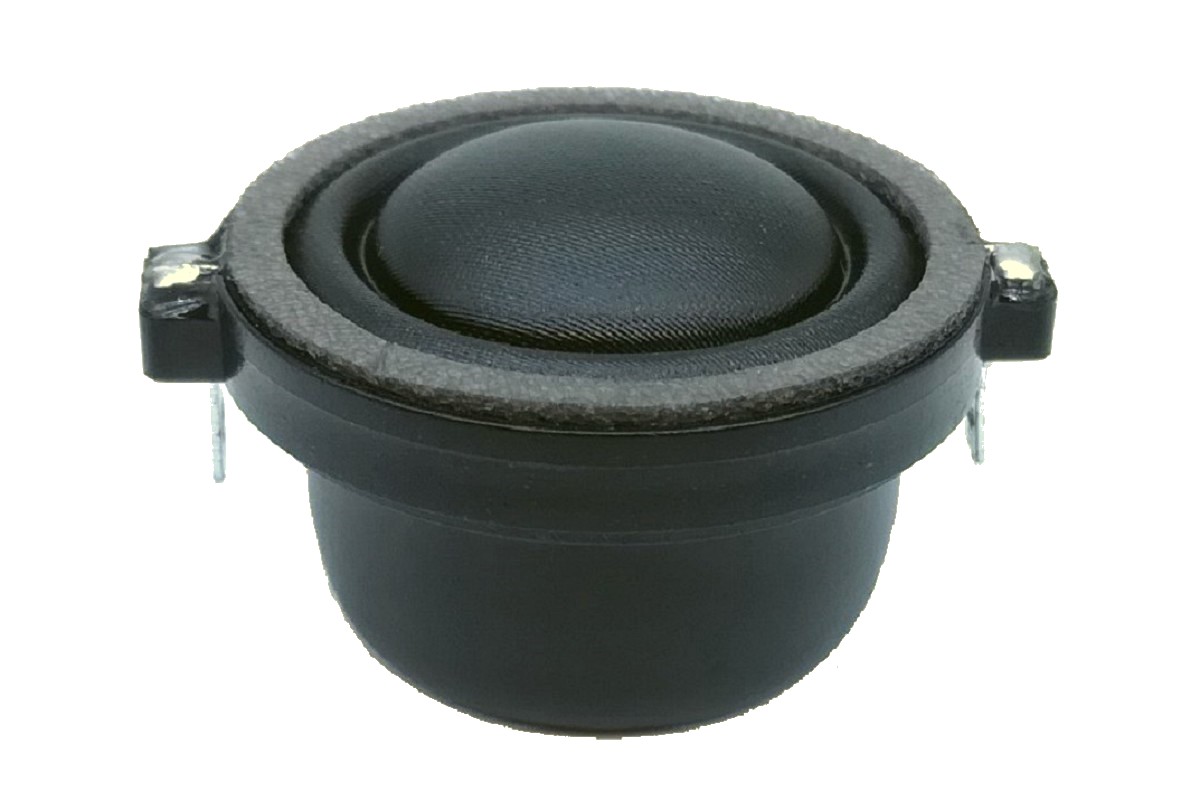

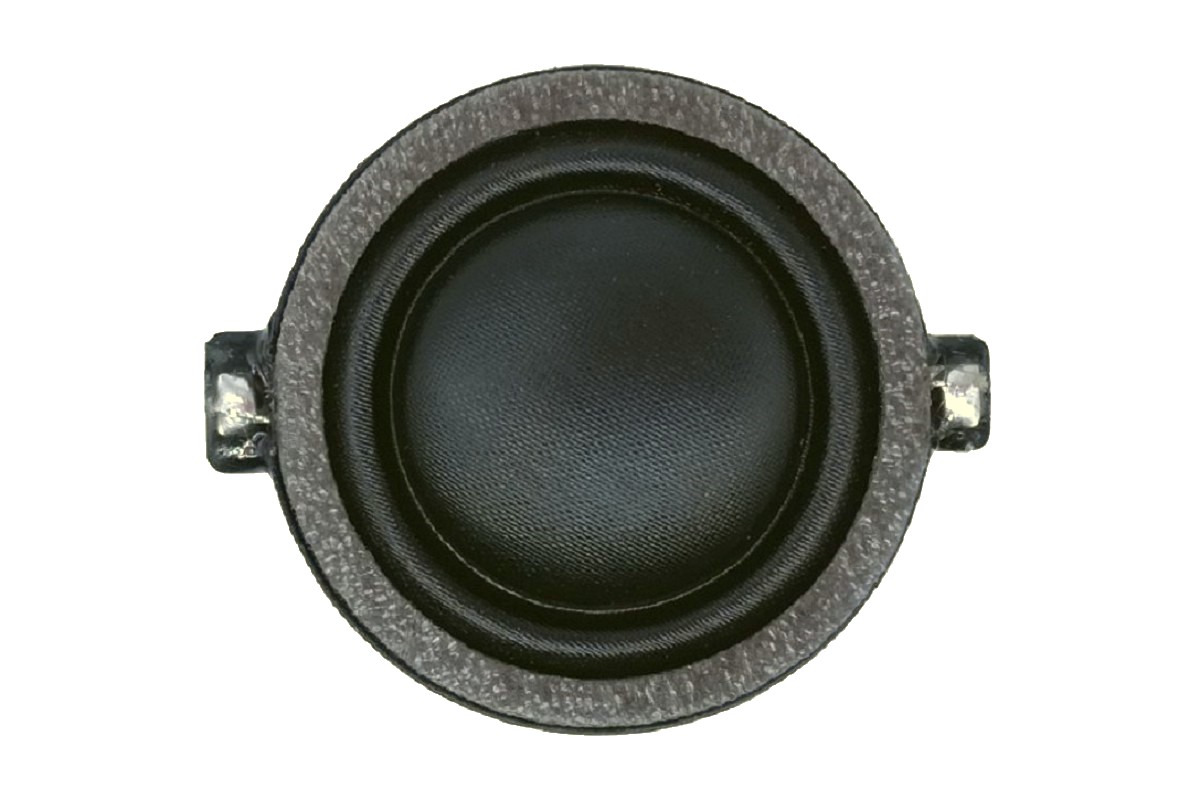

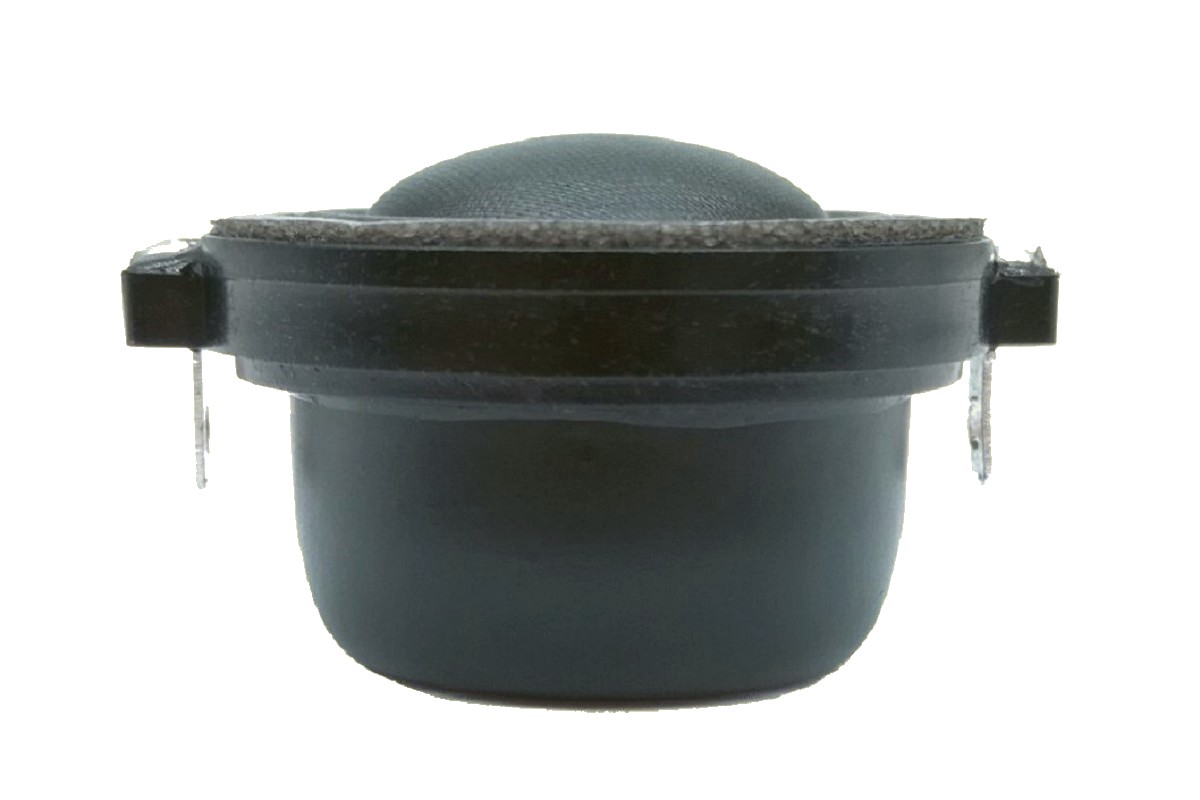

0.8" Textile Dome Tweeter
ASDDL0001-0800
Category - Tweeter
Characteristics -
ASDDL0001-0800
ASDDL0001-0800
ASDDL0001-0800

0.8" Textile Dome Tweeter

ASDDL0001-0800

Category - Tweeter
Characteristics -
ASDDL0001-0800
ASDDL0001-0800
ASDDL0001-0800
ASDDL0001-0800
ASDDL0001-0800
ASDDL0001-0800
Description

This compact Tweeter features an 8 ohm 0.8 inch voice coil, Neodymium magnet motor system and a textile dome diaphragm, which is up to the standard of IPX7. The ingenious design with a metal rear chamber provides lower resonant frequency and increased heat sinking for power handling capacity. The product is designed for portable and compact applications, while providing excellent dynamic sound quality.

0.8" Textile Dome Tweeter

ASDDL0001-0800

Category - Tweeter
Characteristics -
Features
  • 0.8", Plastic Frame
  • Textile Dome Diaphragm
  • Dual Neodymium Magnet Motor System
  • With Ferrofluid-Cooled
  • Aluminum Rear Chamber
  • Waterproof Rating: IPX7
Parameters
Size
Fs
Re
Sensitivity
Quality Factor
Rated Power
0.8 Inch
1285 Hz
8 Ohms
83 dB
0.83 Qts
15 W
Description

This compact Tweeter features an 8 ohm 0.8 inch voice coil, Neodymium magnet motor system and a textile dome diaphragm, which is up to the standard of IPX7. The ingenious design with a metal rear chamber provides lower resonant frequency and increased heat sinking for power handling capacity. The product is designed for portable and compact applications, while providing excellent dynamic sound quality.

Specification Measure Chart Simulation Mechanical Drawing Data Sheet Contact Us
T-S Parameters
Resonance frequency [fs] 1284 Hz
Mechanical Q factor [Qms] 0.981
Electrical Q factor [Qes] 5.402
Total Q factor [Qts]  0.83
Force factor [Bl] 1.204 Tm
Mechanical resistance [Rms] 1.049 kg/s
Moving mass [Mms]  0.128 g
Compliance [Cms] 0.12 mm/N
Effective diaph. diameter [D]  23.5 mm
Effective piston area [Sd] 4.34 cm²
Equivalent volume [Vas] 0.0032 l
Sensitivity (2.83V/1m)  83 dB
Ratio Bl/√Re 0.436 N/√W
Ratio fs/Qts 1547 Hz
Electrical Data
Nominal impedance [Zn]  8 Ω
Minimum impedance [Zmin]  6.8 Ω
Maximum impedance [Zo] 8.1 Ω
DC resistance [Re] 7.61 Ω
Voice coil inductance [Le]  0.036 mH
Power Handling
100h RMS noise test (IEC 18.4) 15 W
Long-term max power (IEC 18.2) - W
Voice Coil & Magnet Data
Voice coil diameter 19.4 mm
Voice coil height 1.7 mm
Voice coil layers 2
Height of gap 2 mm
Linear excursion ± 0.15 mm
Max mech. excursion ± - mm
Unit weight 0.0255 kg
