15" Aluminum Cone Subwoofer
ASDSD0001-0800
Category -
Subwoofer
Characteristics -
Aluminum Alloy Diaphragm
15" Aluminum Cone Subwoofer
ASDSD0001-0800
Category -
Subwoofer
Characteristics -
Aluminum Alloy Diaphragm

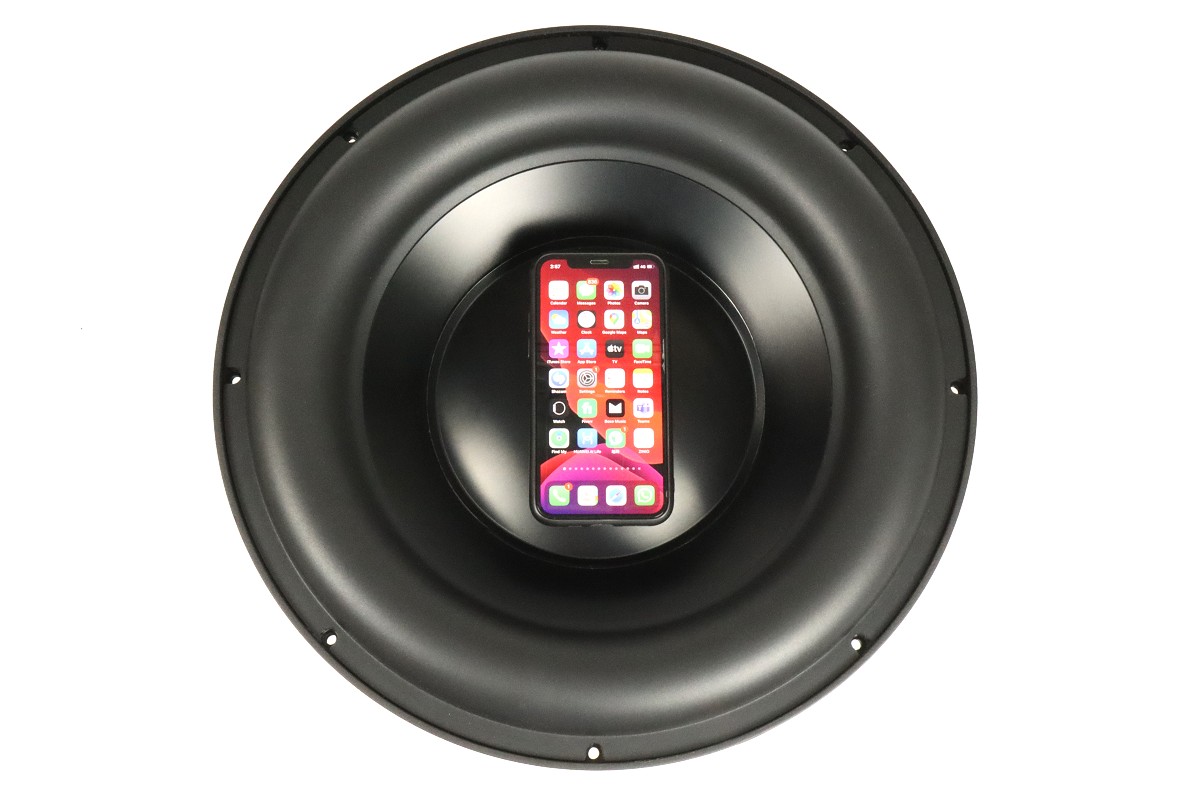

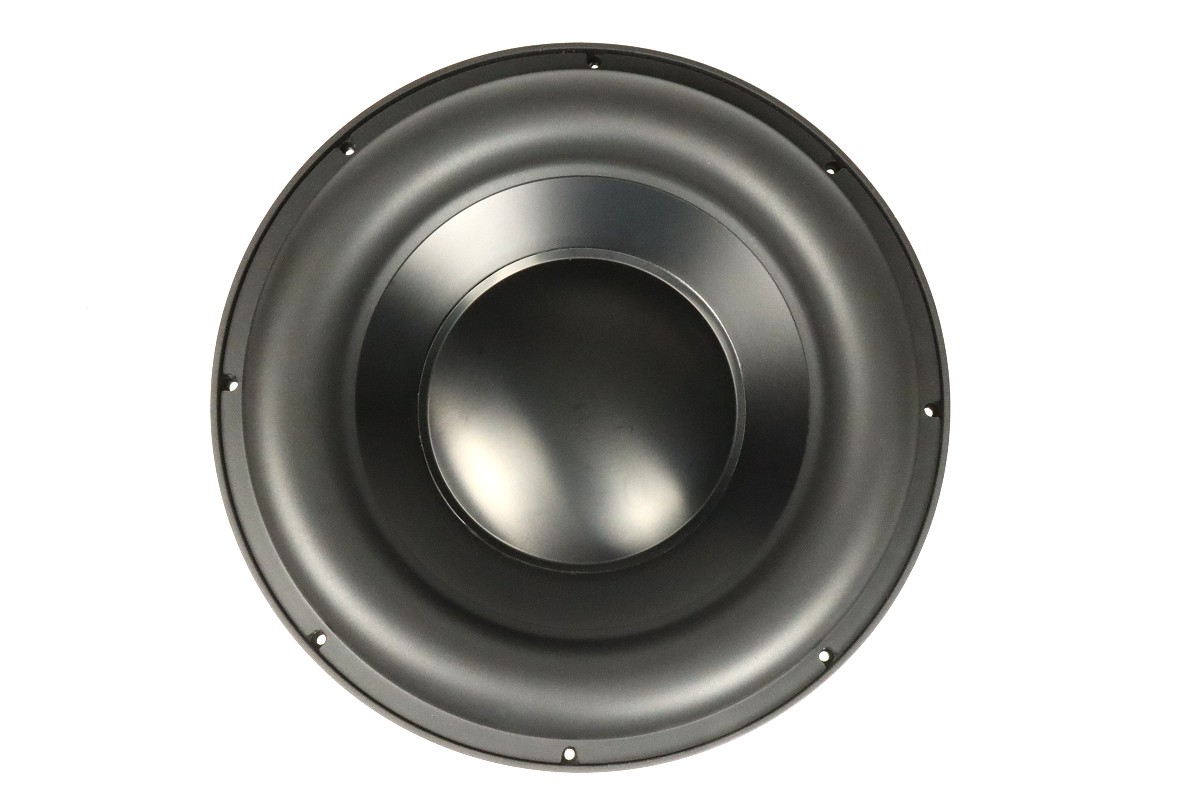

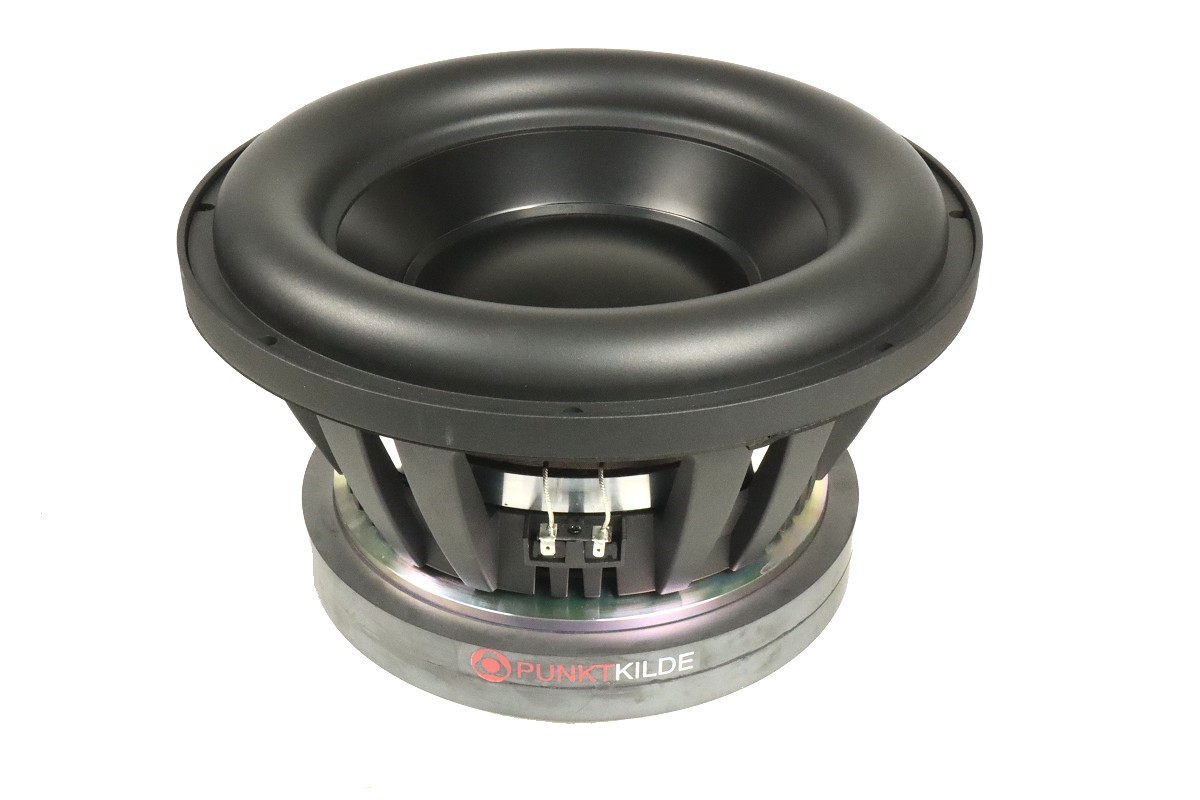

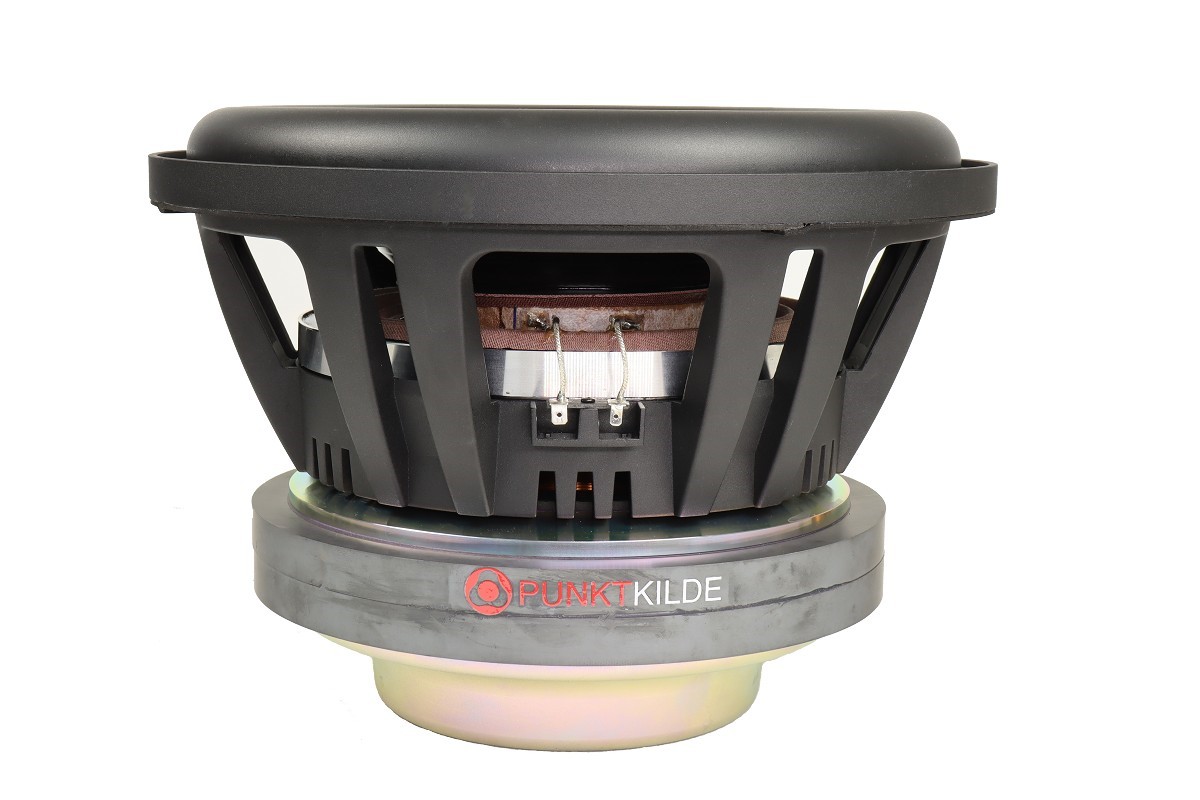

15" Aluminum Cone Subwoofer
ASDSD0001-0800
Category -
Subwoofer
Characteristics -
Aluminum Alloy Diaphragm
T-S Parameters | |
---|---|
Resonance frequency [fs] | 22 Hz |
Mechanical Q factor [Qms] | 12.05 |
Electrical Q factor [Qes] | 0.49 |
Total Q factor [Qts] | 0.47 |
Force factor [Bl] | 30.9 Tm |
Mechanical resistance [Rms] | 6.34 kg/s |
Moving mass [Mms] | 555.91 g |
Compliance [Cms] | 0.09 mm/N |
Effective diaph. diameter [D] | 305 mm |
Effective piston area [Sd] | 730.62 cm² |
Equivalent volume [Vas] | 71.84 l |
Sensitivity (2.83V/1m) | 85 dB |
Ratio Bl/√Re | 12.41 N/√W |
Ratio fs/Qts | 46.41 Hz |
Electrical Data | |
---|---|
Nominal impedance [Zn] | 8 Ω |
Minimum impedance [Zmin] | 7.2 Ω |
Maximum impedance [Zo] | 55.6 Ω |
DC resistance [Re] | 6.2 Ω |
Voice coil inductance [Le] | 3.59 mH |
Power Handling | |
---|---|
100h RMS noise test (IEC 18.4) | 2500 W |
Long-term max power (IEC 18.2) | - W |
Voice Coil & Magnet Data | |
---|---|

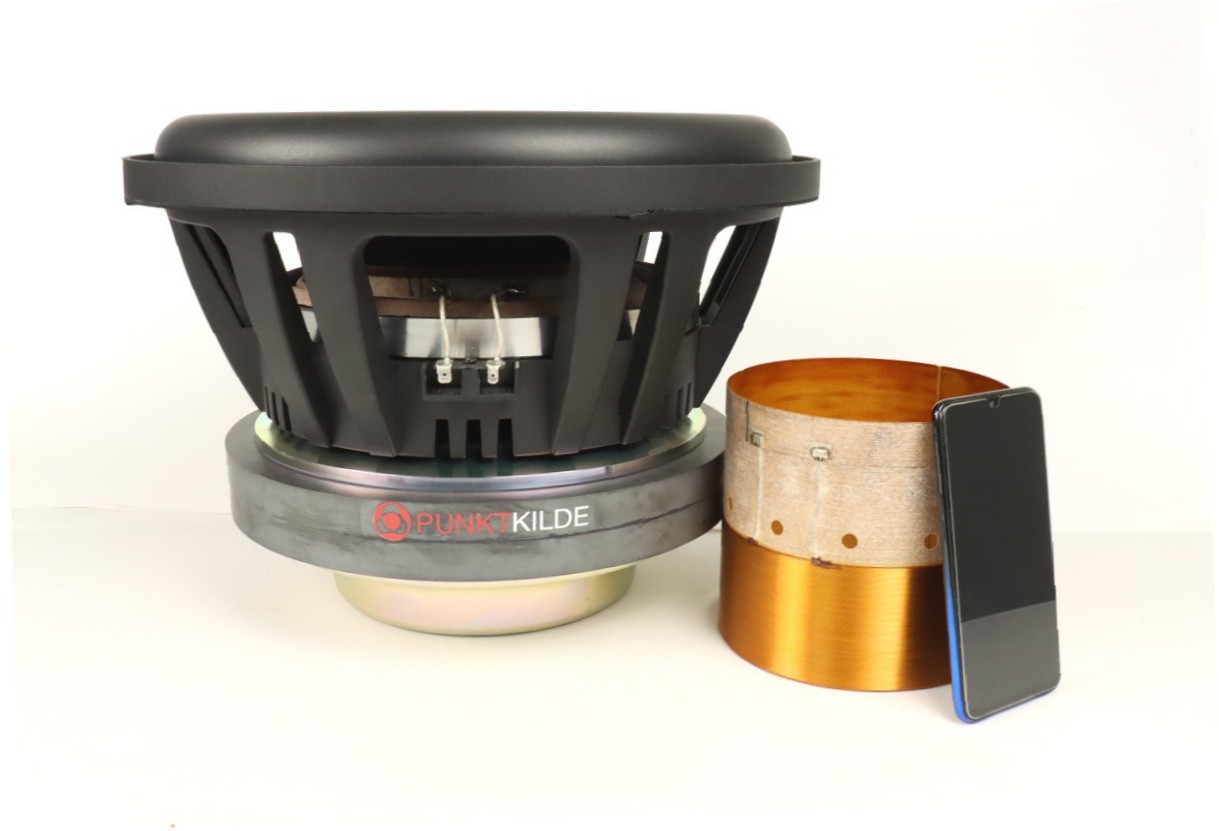

Voice coil diameter | 152.4 mm |
Voice coil height | 66.3 mm |
Voice coil layers | 2 |
Height of gap | 15 mm |
Linear excursion | ± 25.6 mm |
Max mech. excursion | ± 42 mm |
Unit weight | 32.5 kg |
